7200 Precision Hoe Drill
An Industry First - Australian Designed to suit Australian Conditions

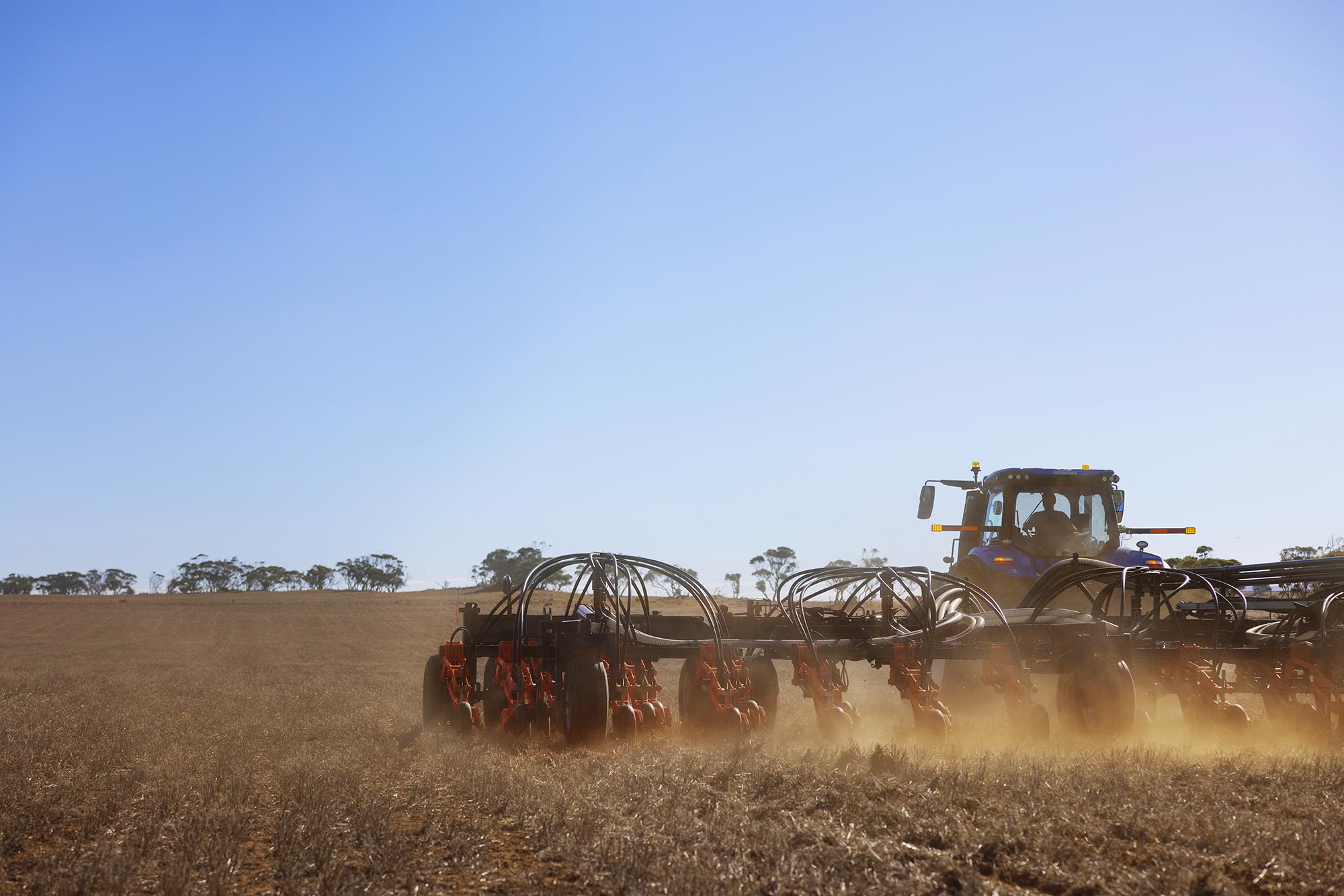

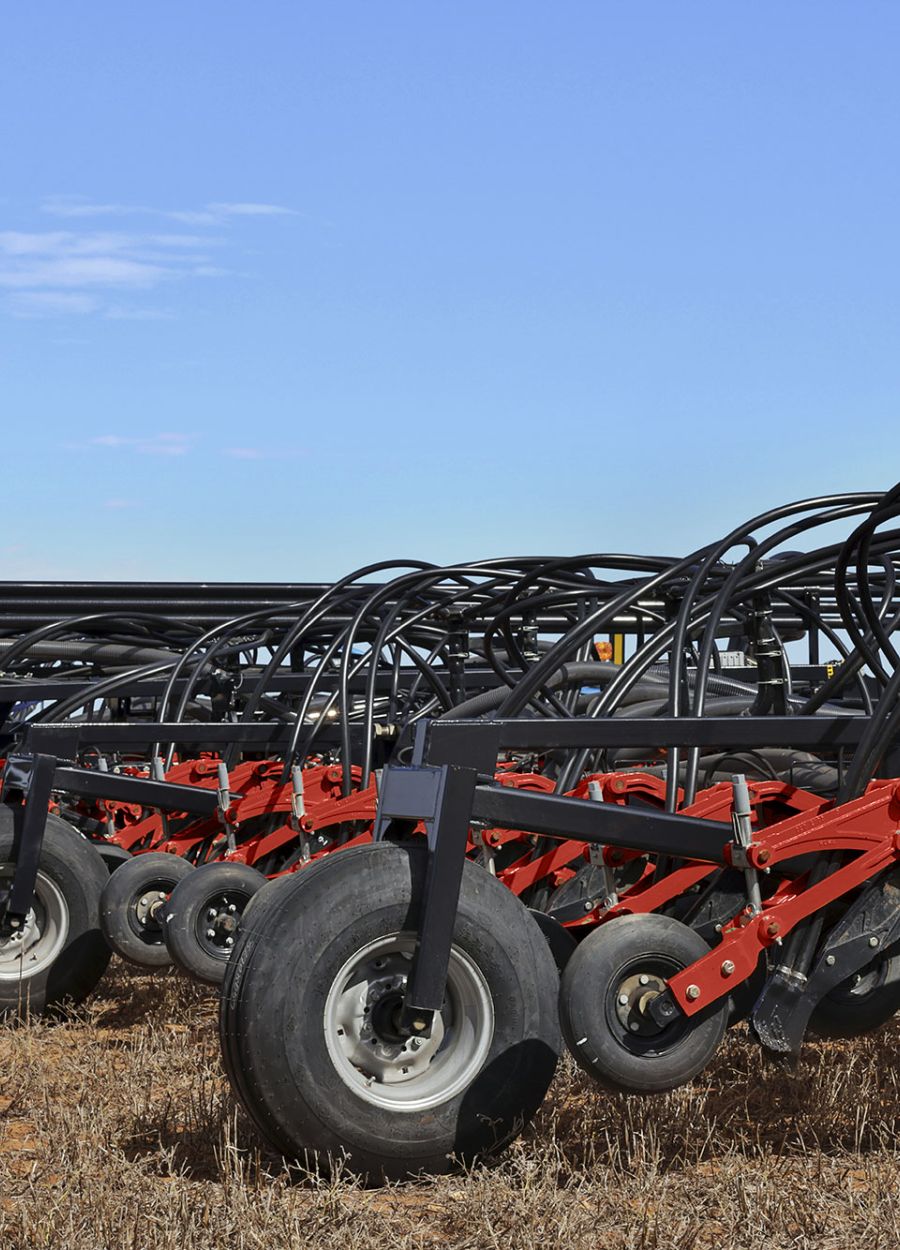

Introducing the Flexi-Coil 7200 Precision Hoe Drill, a pinnacle of agricultural innovation tailored specifically for Australian conditions. Engineered to deliver unparalleled seed placement accuracy across diverse terrains, this precision tool guarantees consistent seeding depths, ensuring optimal crop emergence.
With a versatile array of openers and press wheels to accommodate varying soil types, the Flexi-Coil 7200 sets a new standard in efficiency and reliability for Australian farmers seeking superior seed-to-fertilizer placement.
Simple depth adjust combined with unmatched crop emergence

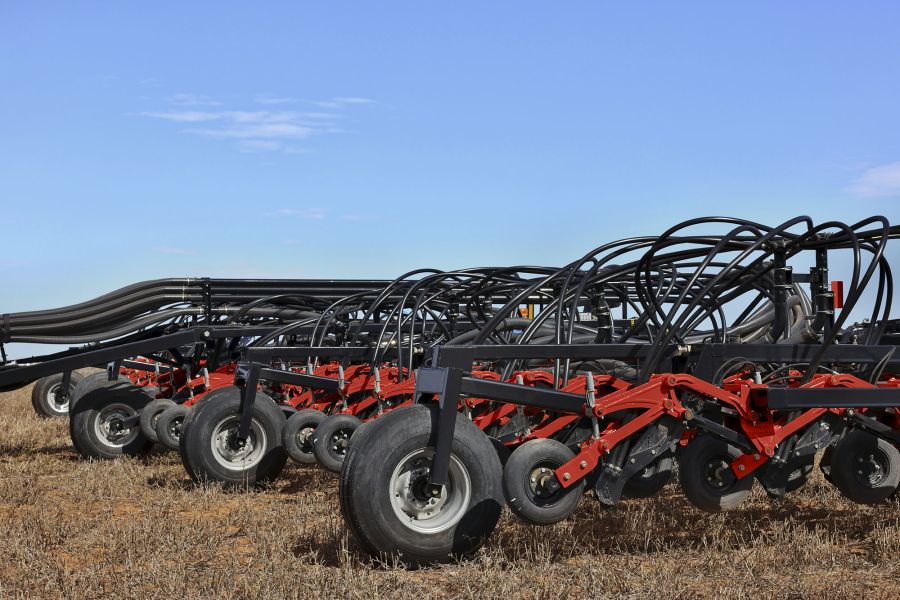

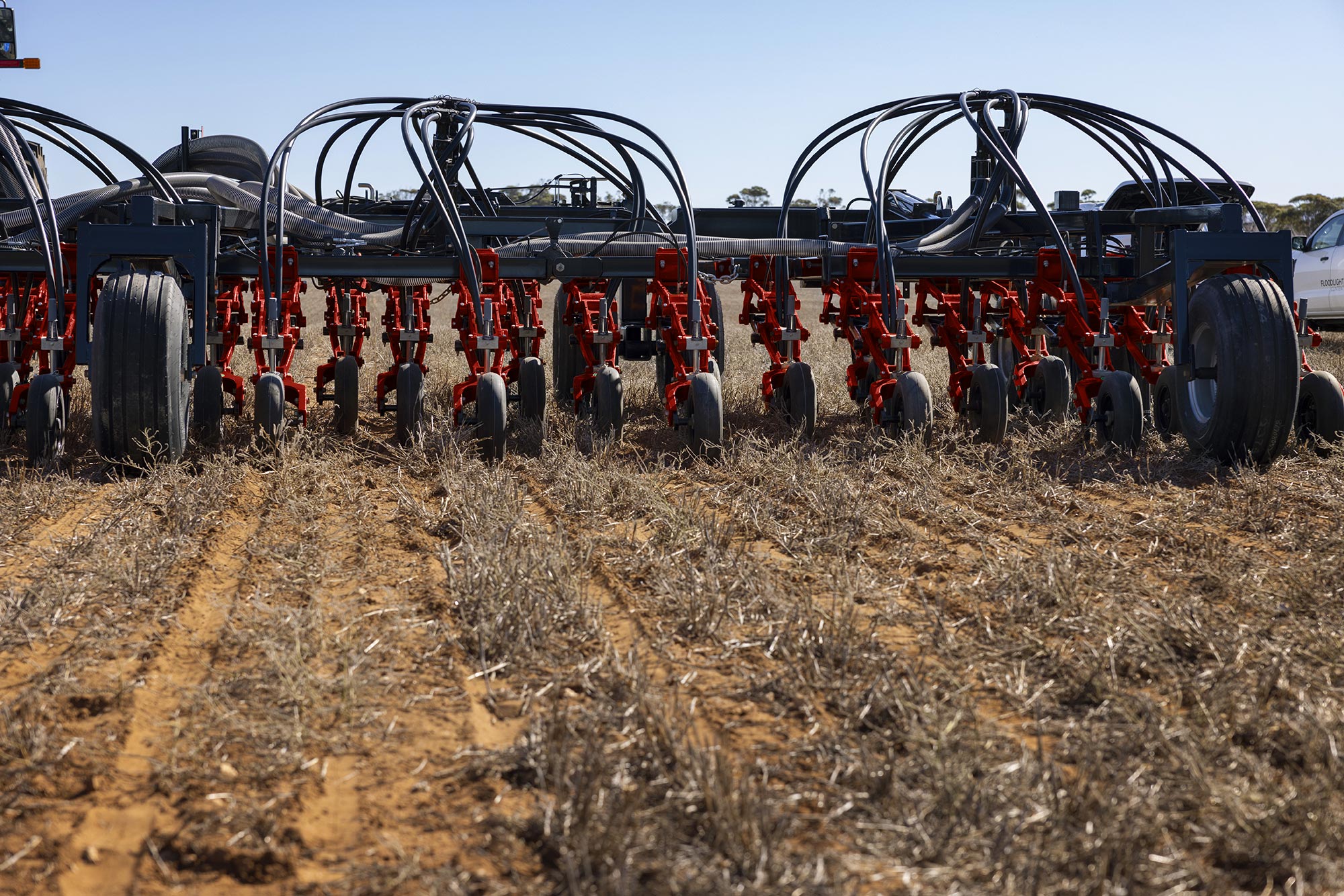

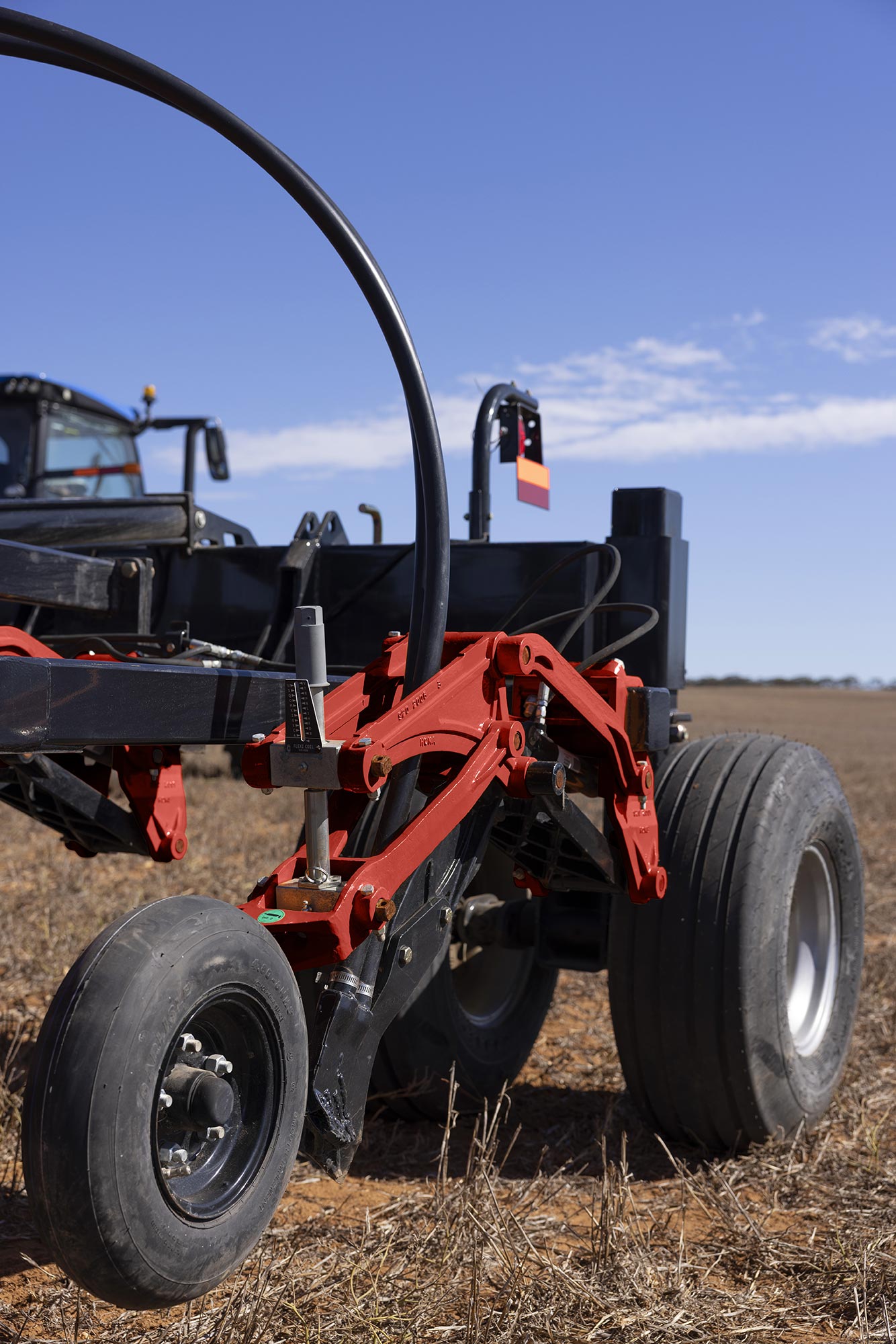

Flexi-Coil introduces its newly designed row unit, setting a new benchmark in agricultural equipment innovation. Boasting a 'state of the art' design, the row unit combines durability and manufacturing excellence, featuring a robust steel frame unit and heavy-duty wheels, hubs, and tyres.
Crafted and rigorously tested in the challenging conditions of Australia, this innovation has received glowing endorsements from farmers who have put it to the test. Join us as we delve into how this cutting-edge technology is setting new benchmarks in agricultural efficiency and reliability.

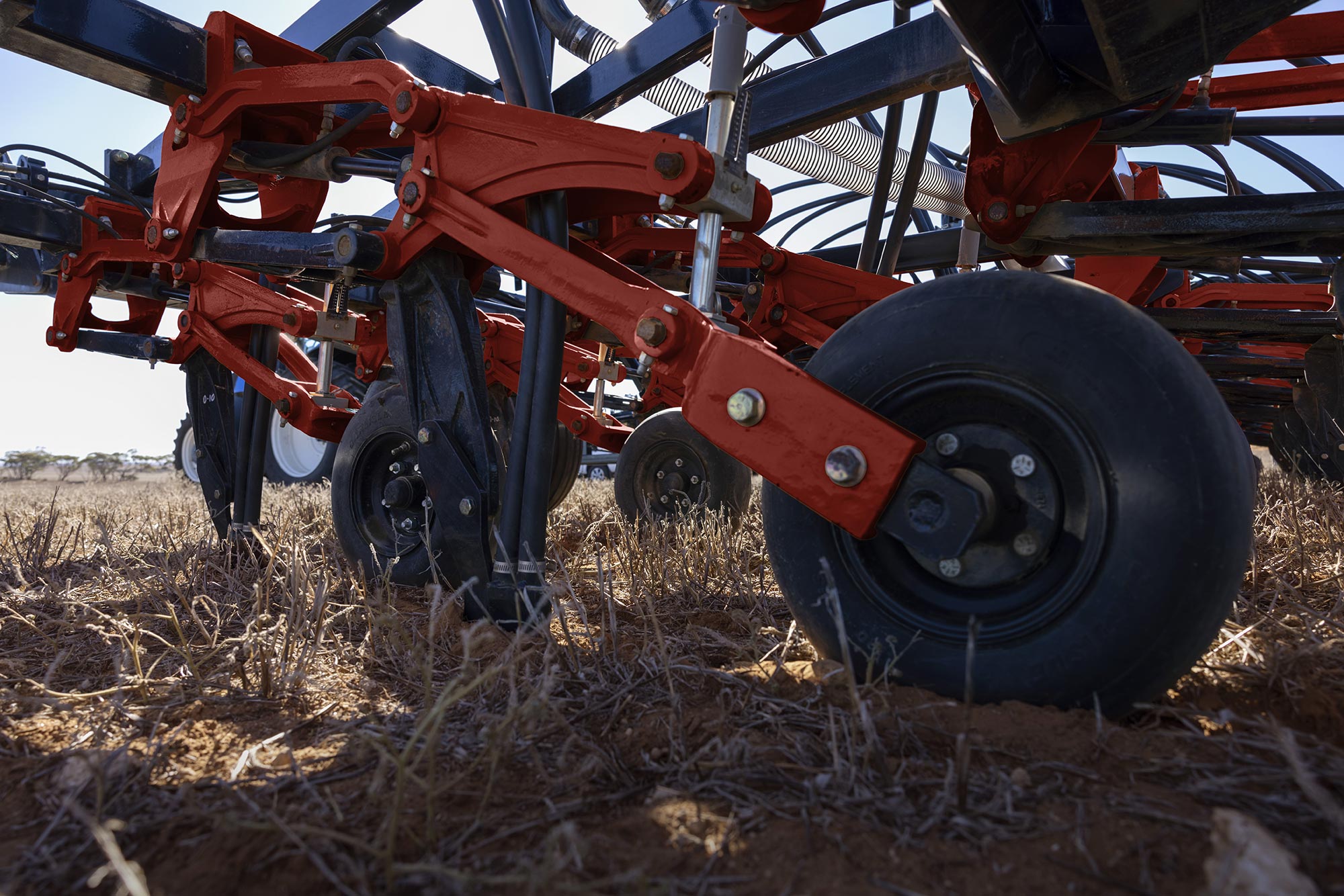

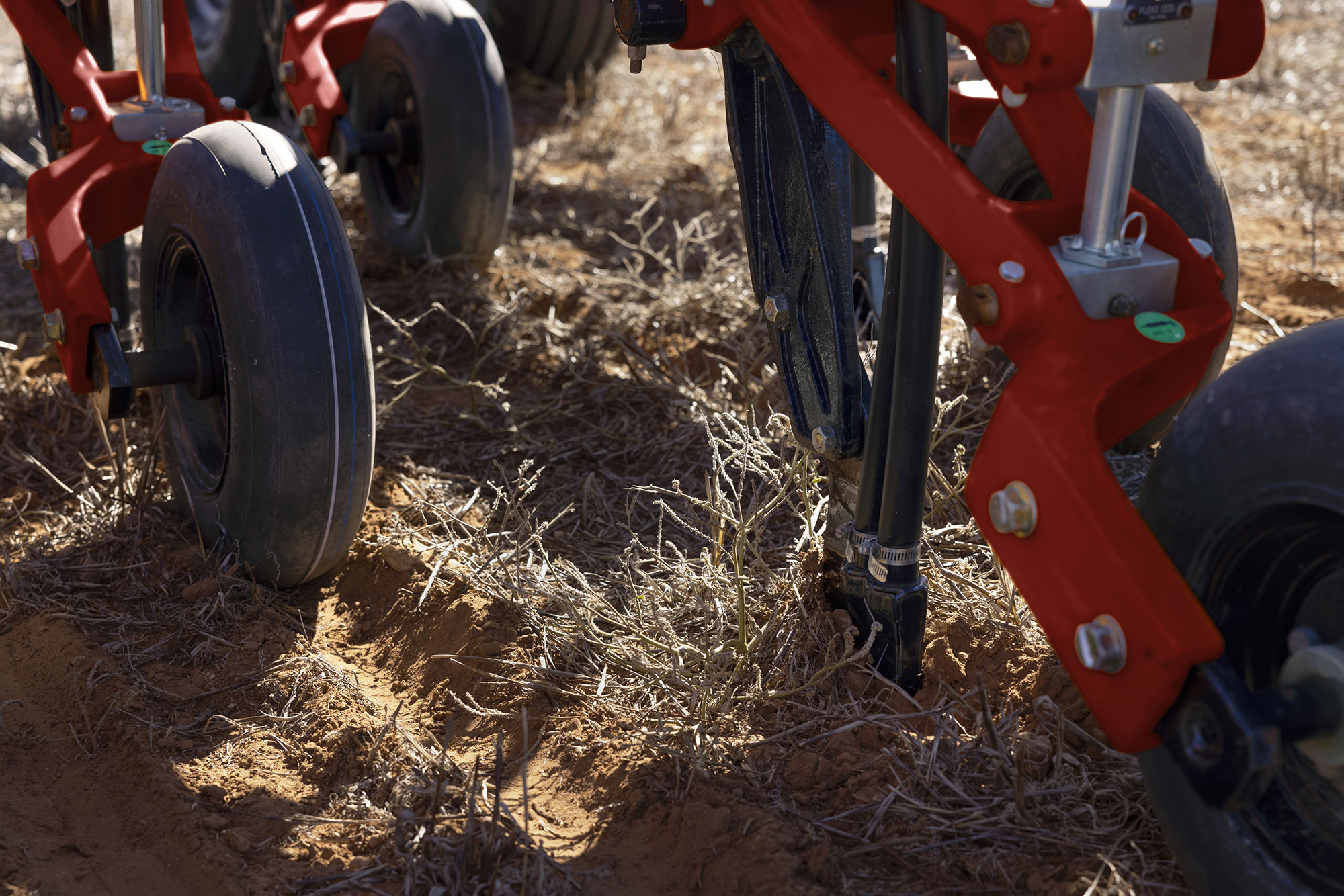

Parallel link design allows for a wheelbase 1.5m shorter than competitors improving ground following on unit. Short distance between opener and presswheel maintains proper seed to fertiliser placement consistently across the operating range, which is critical for maximising yield potential.
The seed and fertiliser placement of the 7200 Row Unit ensures nutrients are readily available to crops, reducing competition from weeds and enhancing weed control.

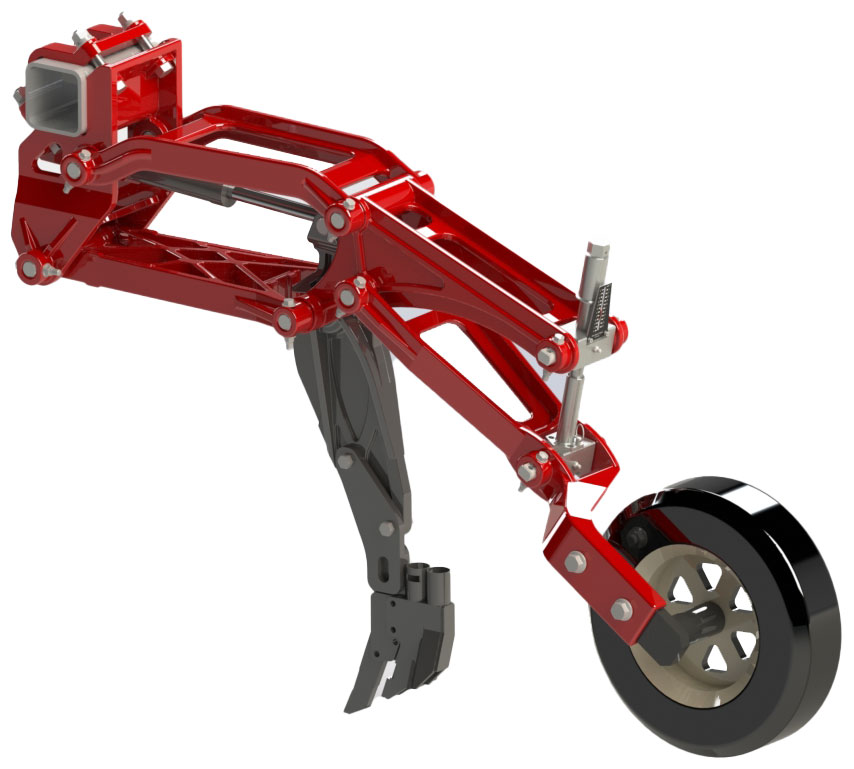

Australian Designed Row Unit

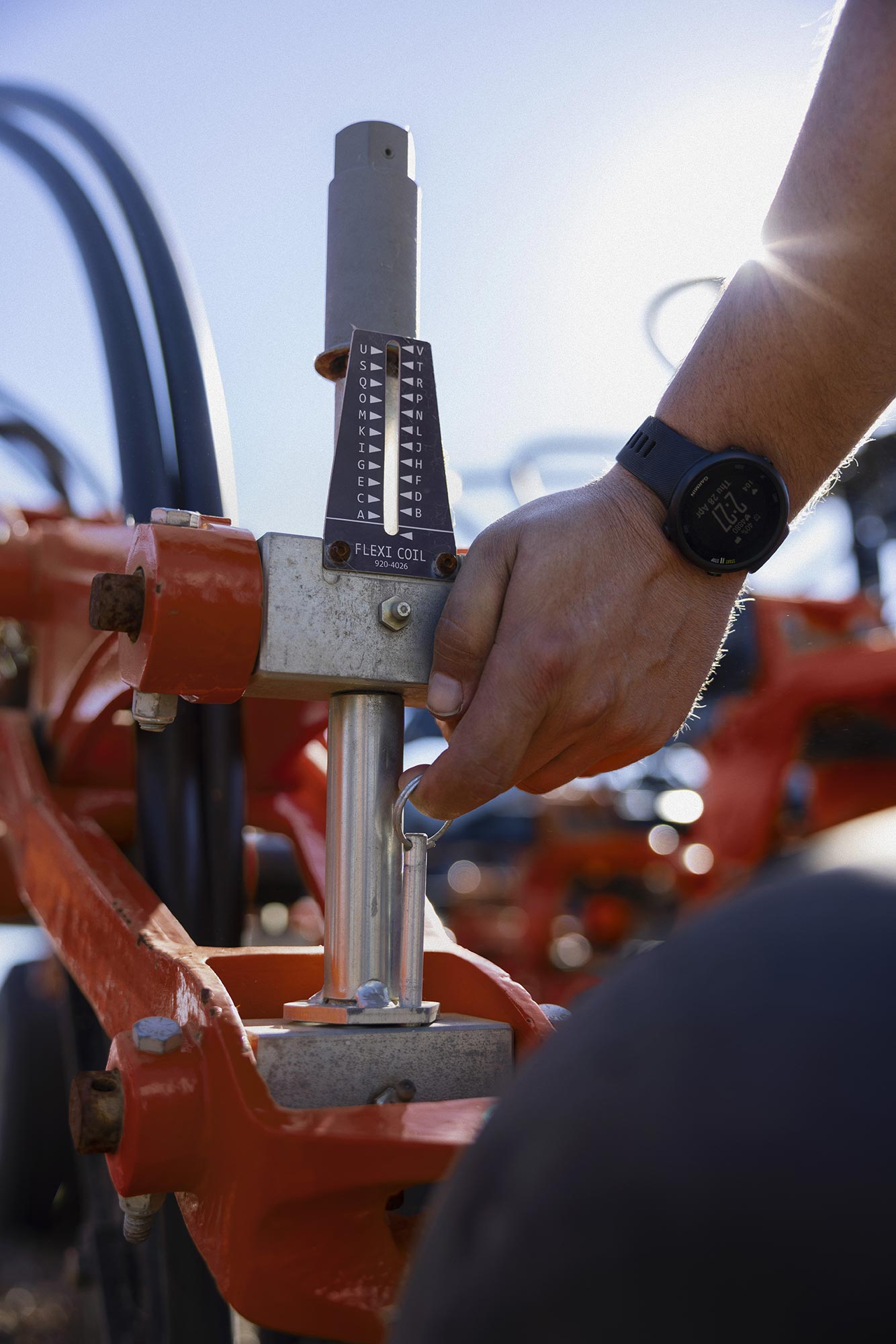

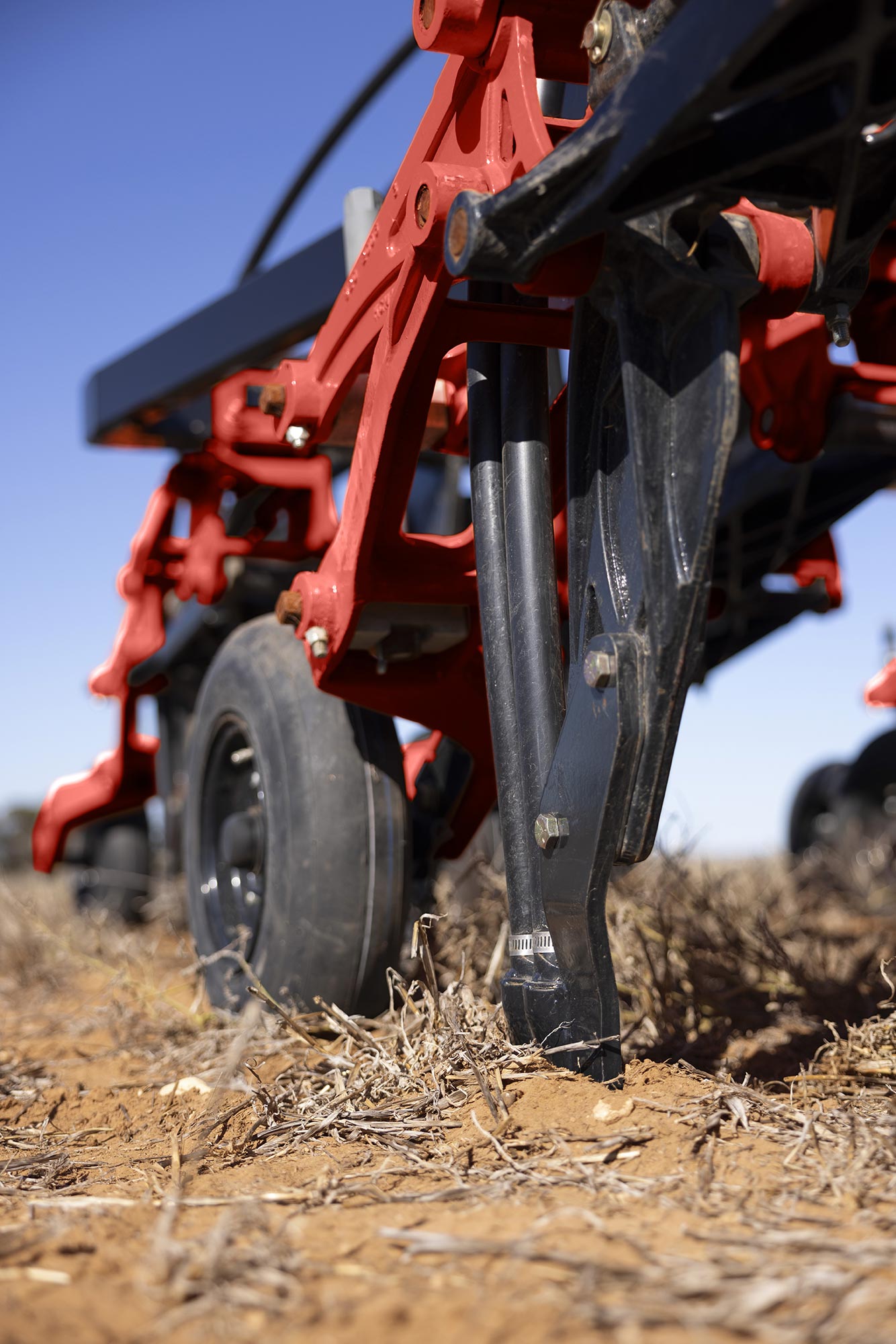

The Australian Modified Row Unit features 1:1 parallelogram ground following with 385mm of vertical travel, offering 200mm upward and 185mm downward movement. It has a bolt-on row unit made of cast steel with a minimum thickness of 10mm. The sowing depth is adjustable from 0 to 75mm in 1mm increments and is lockable. Additionally, it uses 1” pins, Ertylite bushes, and is greaseless.

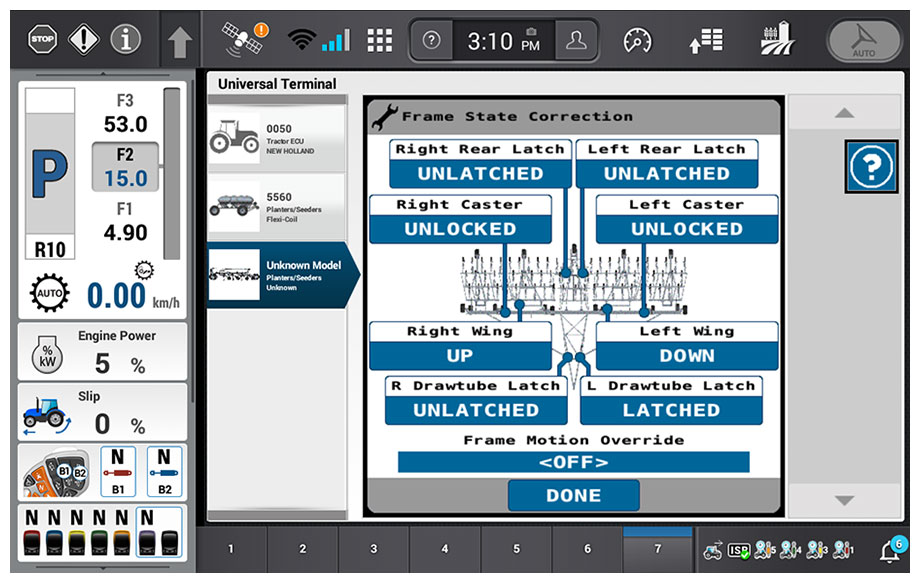

ISOBUS Ready
Using ISOBUS for machine control from inside the cab, operators can adjust trip force and packing force settings easily, optimising performance for both field operations and transport.
Compatible with CNH Pro 700, Pro 1200, IntelliView™ IV, IntelliView™ 12, and other ISOBUS displays.
Features & Benefits
-
Seed to fertiliser separation
Optimal separation (1” 7/8” horizontal and 7/8” vertical) ensures maximum yield potential.
-
Side banding
Effective for achieving the best separation between seed and fertiliser, contributing to optimum yield potential.
-
Distance between tire & opener
Short distance maintains proper seed to fertiliser placement consistently across the operating range, which is critical for maximising yield potential.
-
Nitrogen fertility placement
Placing nitrogen in an ideal position ensures maximum safe utilisation by the crop, promoting crop safety and high yield potential.
-
Next to plant roots
Optimal placement ensures maximum nutrient uptake by plant roots, thereby enhancing productivity.
-
Fertiliser source placement
Ideally positioned for maximum plant uptake potential, enhancing productivity and yield.
-
Reduced root search
Direct placement near plant roots reduces the need for roots to search for nutrients, promoting efficiency and yield.
-
Preferential nutrient access
Ensures nutrients are readily available to crops, reducing competition from weeds and enhancing weed control.
From the engineers
Designed specifically for Australian soil conditions
"The 7200 has undergone some modifications from the Canadian model to help improve yields across the diverse Australian terrain, this included a completely redesigned row unit.
We’ve stress tested the machine with some of our Australian customers already and have received nothing but positive feedback on its seeding accuracy and suitability to Australian conditions. They’ve seen an increase in longevity of bushes leading to depth control, maintenance is easier, and they’ve seen consistent seed placement in undulating terrain, meaning better germination."
- Andrew Kissel, Case IH APAC/ANZ Product Manager for Crop Production
Flexi-Coil 7200 Precison Hoe Drill specifications
| 60' 12" | 80' 12" | |
| Base Size | ||
| Working width ft (m) | 60ft (18.3m) | 80ft (24.4m) |
| Spacing options | 12" (30.5cm) | |
| Number of primary runs | 7 | 9 |
| Number of ranks | 3 | |
| Frame sections | 5 | 7 |
| Dimensions | ||
| Main frame | 10ft (3.0m) | |
| Inner wing | 15ft (4.6m) | |
| Outer wing | 10ft (3.0m) | |
| Transport height | 16ft 6in (5.03m) | |
| Transport width | 18ft 4in (5.6m) | |
| Transport length-without field hitch | 45ft 1in (13.7m) | 56ft 6in (17.2m) |
| Tyres | ||
| Number of tyres | 17 | 19 |
| Dual castors | 12.5l x 15 (d) | |
| High flotation tyres | ||
| Dual centre frame castors | 340/60r15 | |
| Dual inner wing castors | 340/60r15 | |
| Dual outer wing castors | 340/60r15 | |
| Rear transport wheel | 340/60r15 | |
| General specifications ( all sizes) | ||
| Packing | individual on row | |
| Packing wheels | smooth profile 4.8 x 8 | |
| Optional openers | Double shoot, side band (2" lateral, 7/8" vertical separation) | |
| Air kits | double shoot | |
| Row unit/ tyne break out | fully adjustable 275-550lbs (125-250kg) | |
| Rank to rank spacing in (cm) | 42.9" (109cm) | |
| Frame/ ground clearance in (cm) | 30" (76.2cm) | |
| Hydraulic remotes required | 2 hydraulic remotes | |
| Hydraulic system | high quality cylinders performing both depth and lift functions | |
| Depth control | individual depth control - lockable screw-adjust | |
| Safety chain | standard | |
| Transport locks | standard | |
| Rear tow hitch | standard | |
| Hydraulics | ||
| Opener pressure adjustment | Electronic hydraulic adjustment from the display* Requires an isobus compliant display with vt (not included, see additional attachments) | |
| Frame control | Electronic hydraulic adjustment from the display* Requires an isobus compliant display with vt (not included, see additional attachments) | |
| Configuration | ||
| Precision hoe openers | double shoot knife package | |
| Press wheels and arms | pneumatic or semi-pneumatic packers | |
| Air package | Double shoot air package - 60' 12" Tbh or tbt (7 run) | Double shoot air package - 80' 12" Tbh or tbt (9 run) |
| Additional attachments (optional) | ||
| Presswheel mudscrapers | ||
| Hitch ac 60 long a-frame | hitch ac 80 long a-frame | |
| Left or right hand precision opener knife | ||
| Flexcontrol iv + monitor package | ||
| High draft weight kit - 60ft | high draft weight kit - 80ft | |
| Warranty | ||
| Standard warranty | 12 months | |
