6200 Precision Disc™ Drill

Precise placement of seed and fertilizer in one pass

The 6200 double-shoot disc drill is designed for one-pass placement of seed and fertiliser with accuracy for uniform emergence, better stands, higher yields and more profit for you. Choose from seeding widths of 30, 40, 50 and 60 ft. (9.1, 12.2, 15.2 and 18.2 m) with 10 in. (254 mm) row spacing.

Features & Benefits

The 6200 Double-Shoot Disc Drill is available in a range of working widths to suit large-scale seeding operations. Its double-shoot system places seed and fertiliser in separate zones in a single pass, while precise depth control and consistent down pressure help deliver uniform emergence across varying soil conditions.

Separate, fixed placement zones for seed and fertilizer

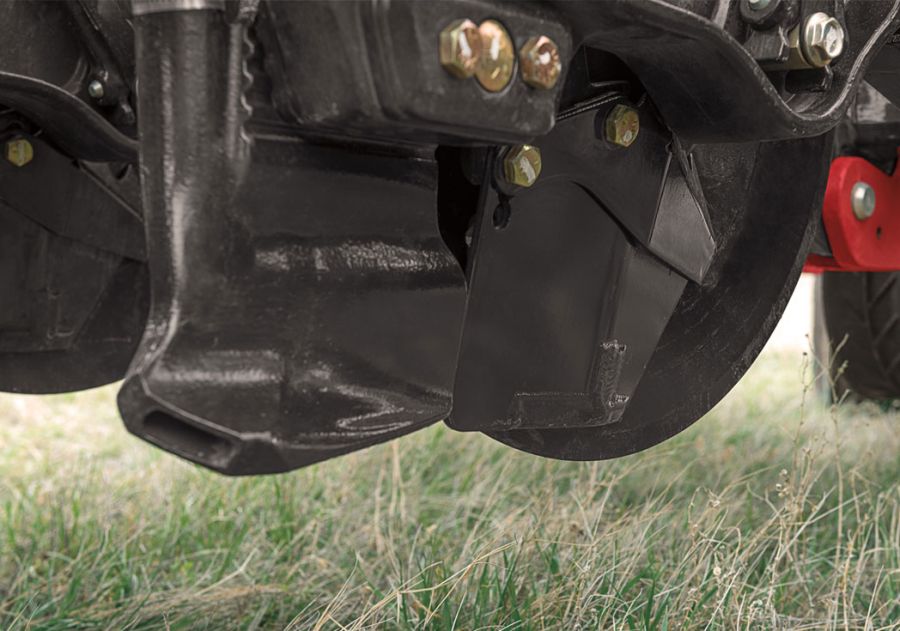

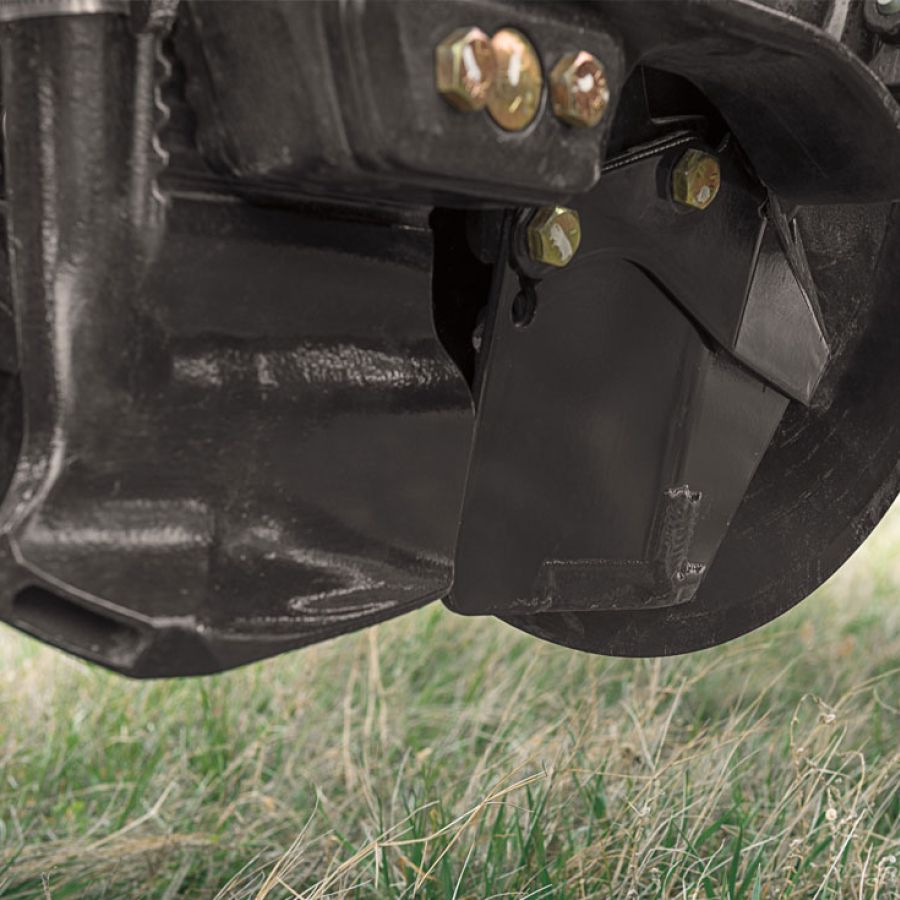

The unique precision sideband knife creates an ideal “shelf” for the seed with fertilizer banded one inch (25.4 mm) below and one inch (25.4 mm) to the side of the seed – ideal placement for maximum uptake when the seed germinates, and optimal seed-to-fertilizer placement.
The seed knife is cast using unique metal chemistry and a carbide edge for durability and extended wear. In addition, the knife is cushioned and rubber shock isolated to prevent damage from impacts. The knife is easy to replace when needed.
The double-shoot precision placement knife places seed and fertiliser in separate planes in a single operation for maximum uptake and optimal seed-to-fertiliser placement.
Discs are made with a hardened metal compound that won’t dent or shatter. The discs cut through the heaviest crop residue and, combined with the precision sideband knife, greatly reduce hair-pinning at the seed.
A new larger-diameter, 18 in. (457.2 mm) gauge wheel helps clean off the coulter discs, reducing soil clumps.
The patented parallel link opener provides industry-leading ground following and accurate seed placement at high speeds and over rough terrain to ensure best-in-class seed emergence.
A heavier variable-pitch spring applies even down pressure so you can tailor the P2082 to match soil type and moisture conditions.
The textured wheel surface profile creates a soil crease for controlled soil cracking.

Flexi-Coil 6200 Air Drill specifications

Download Specifications

	30 ft (9.14 m)	40 ft (12.19 m)	50 ft (15.24 m)	60 ft (18.29 m)
Configurations
Tank style	Tow behind or tow between air cart
Row spacing	10 in (25.4 cm) or 7.5 in (19.05 cm) - welded on mounts
Frame
Weight	7.5 in - (8,900 kg) 10 in – (7,900 kg)	7.5 in - (11,250 kg) 10 in - (10,000 kg)	7.5 in - (18,143 kg) 10 in - (16,601 kg)	7.5 in - (20,639 kg) 10 in – (18,824 kg)
Fold type	Single Fold		Double Fold
Wing flex	3 section flex (10 degree down & 15 degree up)		5 section flex (10 degree down & 15 degree up)
Hitch	Floating
Transport height	13.1 ft (3.99 m)	13.8 ft (4.20 m)	13.2 ft (4.02 m)	14.9 ft (4.54 m)
Transport width	12 ft (3.65 m)	18.8 ft (5.73 m)
Tyre package (high flotation)	Quantity: 16 total wheels Front of mainframe - 12.5 L x 15 dual wheels on castoring walking beam axles Front and rear on wings - 12.5 L x 15 dual wheels on walking beam axles (front on castor) Rear of main frame - 18 L x 16.1 dual wheels on walking beam axles		Quantity: 24 total wheels Walking tandem 12.5 L x 15 on inner and outer wings Walking tandem 16.5 x 16.1 on centre section
Single shoot row unit / opener
Minimum PTO Hp requirement	10 in (25.4 cm) - 145 Hp 7.5 in (19.05 cm) - 195 Hp	10 in (25.4 cm) - 195 Hp 7.5 in (19.05 cm) - 260 Hp	10 in (25.4 cm) - 228 Hp 7.5 in (19.05 cm) - 304 Hp	10 in (25.4 cm) - 274 Hp 7.5 in (19.05 cm) - 365 Hp
Operating speed	8-12.7 kph
Depth adjustment	Per opener 0 - 3.5 in (0 - 8.9 cm) 14 increments with single "T" handle
Row unit vertical travel (from surface)	8.5 in (21.6 cm) up, 11.5 in (29.2 cm) down
Road - to - opener clearance	8.5 in (21.6 cm) up
Row unit spring down pressure	160 - 400 lb (73 - 181 kg)
Rank down pressure adjustment per row	Single point hydraulic in cab adjustment (200-1,400 psi)
Opening disc	18 in (45.72 cm) single bevel at 7 degrees
Closing system	Double edge, single wheel
Closing system pressure	3 settings 59, 71, 84 lb - (27, 32, 38 kgs)
