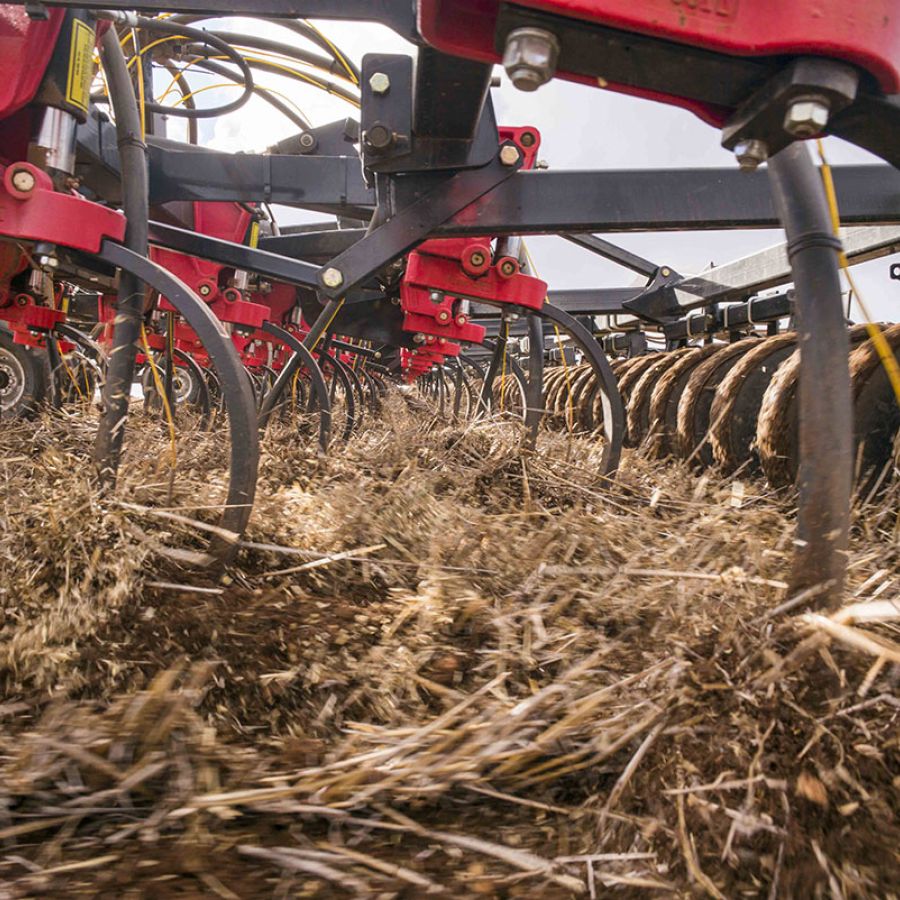

5500 Air Drill

Features a patented two-piece wing

The Flexi-Coil 5500 Air Drill features a patented two-piece wing, with simple, parallel-circuit hydraulics, to minimise stress on the framework while ensuring depth accuracy.

The air drill is available in 60 ft (18.3 m), 70 ft (21.3 m) and 80 ft (24.4 m) widths for larger operations.

Split-row tyne configurations in spacings of 254 mm or 305 mm (10” or 12”) give you a smooth field finish with conventional C-shanks using the same proven trip design.

Download Brochure

Features & Benefits

The Flexi-Coil 5500 Large Hoe Drill utilises an industry exclusive fold back design with a flexible frame to deliver uniform sowing depths through varying field conditions.

Range of tips, including an Australian-designed hydraulic option.
Innovative fold-back design for compact road transport and easier storage.
Flexible Frame distributes the load across all the wheels when in transport and follows the ground when sowing.
Single-point depth control for simple and quick adjustments.
Uniform, adjustable packer pressure helps ensure consistent seed-to-soil contact without air pockets in the furrow.
Four-bar frame provides ample ground clearance and residue flow.
Floating hitch gives improved land following from front to back.
Level lift gives consistent sowing depth across the width of the bar.

Flexi-Coil 5500 Air Drill specifications

Download Specifications

	Base Size
	60 ft (18.3 m)	70 ft (21.3 m)	80 ft (24.4 m)
Spacing options 10 in/25.4 cm
Number of shanks	72	84	NA
Working width	60 ft 18.3 m	70 ft 21.3 m	NA
Spacing options 12 in/30.5 cm
Number of shanks	60	70	80
Working width	60 ft 18.3 m	70 ft 21.3 m	80 ft 24.4 m
Frame widths
Main frame	10 ft 3.1 m	10 ft 3.1 m	10 ft 3.1 m
Inner wing	15 ft 4.6 m	15 ft 4.6 m	15 ft 4.6 m
Outer wing	10 ft 3.1 m	15 ft 4.6 m	20 ft 6.1 m
Transport width	17 ft 8 in 5.4 m	17 ft 8 in 5.4 m	17 ft 8 in 5.4 m
Transport height: max	13 ft 6 in 4.1 m	13 ft 6 in 4.1 m	13 ft 6 in 4.1 m
Tyres
Centre frame castors	12.5 L × 15 (D)	12.5 L × 15 (D)	12.5 L × 15 (D)
Inner wing castors	12.5 L × 15 (D)	12.5 L × 15 (D)	12.5 L × 15 (D)
Outer wing castors	12.5 L × 15 (D)	12.5 L × 15 (D)	12.5 L × 15 (D)
Rear transport wheel*	12.5 L × 15 (D)	12.5 L × 15 (D)	12.5 L × 15 (D)
Press wheels options
Rubber	3 in × 22 in 7.6 cm × 55.9 cm
	4 in × 22 in 10.2 cm × 55.9 cm
	5.5 in × 22 in 14 cm × 55.9 cm
Steel	3.5 in × 22 in 8.9 cm × 55.9 cm
Steel	4.5 in × 22 in 11.4 cm × 55.9 cm
Pneumatic	6.5 in 16.5 cm
Depth control	Each wing follows ground independently with flexibility front to rear with single point depth setting
Packing pressure adjustment	Adjustable packing pressure
