5000HD Air Drill
5000HD Air Drill
Put seed and fertiliser in the right place for faster, more even germination

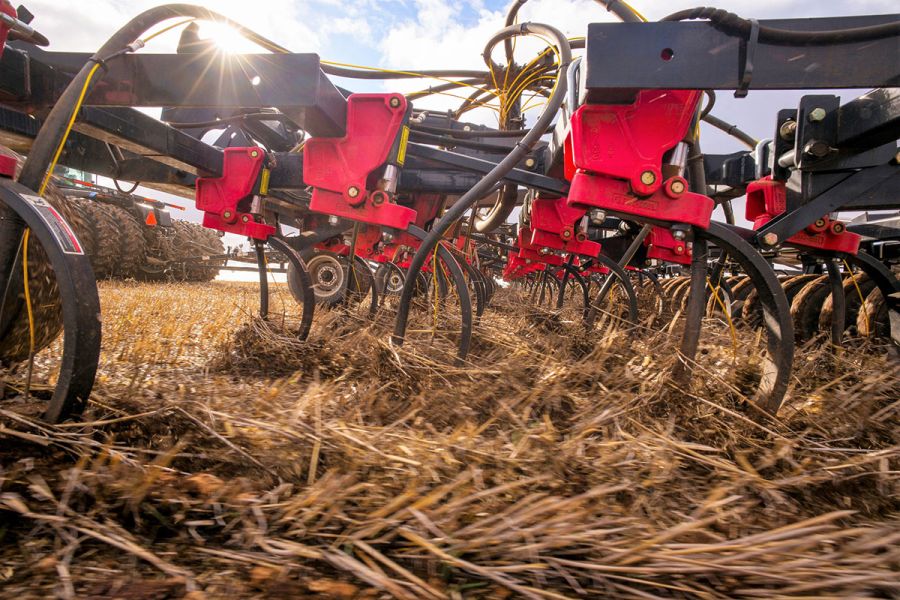

The 5000HD Air Drill lets you put seed and fertiliser in the right place for faster, more even germination. It delivers accurate seed placement with on row packing. With a flexible frame and four bar configuration, the 5000HD brings precision to a wide variety of seeding conditions.
Available in the following widths: 39 ft (11.9 m) three section, 45 ft (13.7 m) five section, 51 ft (15.6 m) five section and 57 ft (17.4 m) five section.
Features & Benefits
The Flexi-Coil 5000HD delivers accurate seed placement with on-row packing and puts seed and fertiliser in the right place for faster, more even germination. It delivers accurate seed placement with on-row packing.
-
Floating hitch with flexible frame follows contours to keep consistent sowing depth.
-
3 or 5 section frame with wing-up fold design.
-
No wheels in frame deliver exceptional residue flow.
-
Packer wheels carry the rear of the frame for outstanding residue flow.
-
Single-point depth adjustment makes setting your seeding depth a quick and efficient process.
-
Level lift for depth accuracy across the entire machine.
-
Large tyre footprint for great flotation and easier pulling.
-
High frame clearance helps sow into standing residues.
-
Range of trips, including an Australian-designed hydraulic option.
-
Solid modular construction ensures years of troublefree service.
Flexi-Coil 5000HD Air Drill specifications
Base Size | ||||
39 ft (11.9 m) | 45 ft (13.7 m) | 51 ft (15.6 m) | 57 ft (17.4 m) | |
No. sections | 3 | 5 | 5 | 5 |
Dimensions: transport | ||||
Length | 29 ft 8.8 m | 29 ft 8.8 m | 29 ft 8.8 m | 29 ft 8.8 m |
Height | 17 ft 6 in 5.3 m | 13 ft 6 in 4.1 m | 17 ft 6 in 5.3 m | 16 ft 11 in 5.2 m |
Width | 20 ft 6 in 6.2 m | 20 ft 6 in 6.2 m | 20 ft 6 in 6.2 m | 20 ft 6 in 6.2 m |
Spacing options 9.875 in/25 cm | ||||
Number of shanks | 48 | 56 | 62 | 70 |
Working width | 39.5 ft 12 m | 46.1 ft 14.1 m | 51 ft 15.6 m | 57.6 ft 17.6 m |
Spacing options 12 in/30.5 cm | ||||
Number of shanks | 40 | 46 | 52 | 58 |
Working width | 40 ft 12.2 m | 46 ft 14 m | 52 ft 15.9 m | 58 ft 17.7 m |
Tyres | ||||
Dual front castors (centre section) | 11 L × 15 (D) | 11 L × 15 (D) | 11 L × 15 (D) | 11 L × 15 (D) |
Rear (centre section) | 11 L × 15 (D) | 11 L × 15 (D) | 11 L × 15 (D) | 11 L × 15 (D) |
Dual front castors (wing section) | 9.5 L × 15 (D) | 9.5 L × 15 (D) | 9.5 L × 15 (D) | 9.5 L × 15 (D) |
Depth control | Flexible frame with single-point depth setting | |||
Press wheels options | ||||
Rubber | 3 in × 22 in 7.6 cm × 55.9 cm | |||
4 in × 22 in 10.2 cm × 55.9 cm | ||||
5.5 in × 22 in 14 cm × 55.9 cm | ||||
Steel | 3.5 in × 22 in 8.9 cm × 55.9 cm | |||
4.5 in × 22 in 11.4 cm × 55.9 cm |
